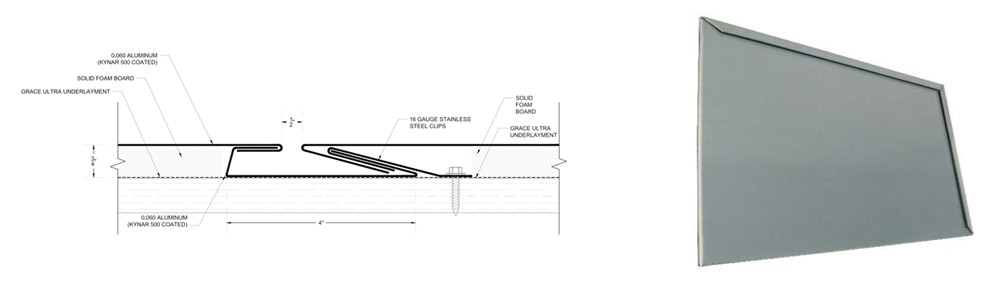

CSI Architectural Metal, Inc.

Reveal Roof Panel

Part ID: RRP
Concealed fastened Panel System
Install from the bottom upwards
Applies over solid substructure
Panels can be installed horizontal, vertical or
diagonal and are interchangeable for accent effect
Panels are available in various sizes and shapes
Panel Width: 6” to 54”
Panel Length: varies
Panel Reveal: 1/4” to 1”

Related Projects

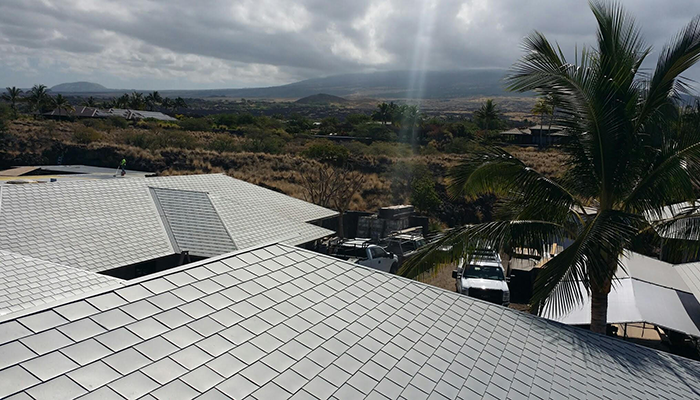

Interlocking/Flat Lock Tile

Part ID: FLP
Concealed fastened Panel System
Install from the bottom upwards
Applies over solid substructure
Panels can be installed horizontal, vertical or
diagonal and are interchangeable for accent effect
Panels are available in various sizes and shapes, please review the photographs Convex and concave tiles
Diamond-, Square-, and Rectangular Tiles
Available in different geometrical forms, e.g.
trapezoidal or honeycomb design
Panel Width: varies
Panel Length: varies
Material: Copper, Stainless Steel and Zinc

Related Projects

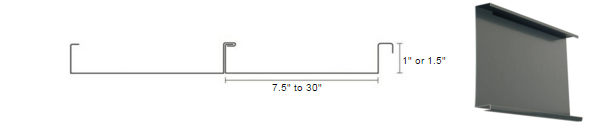

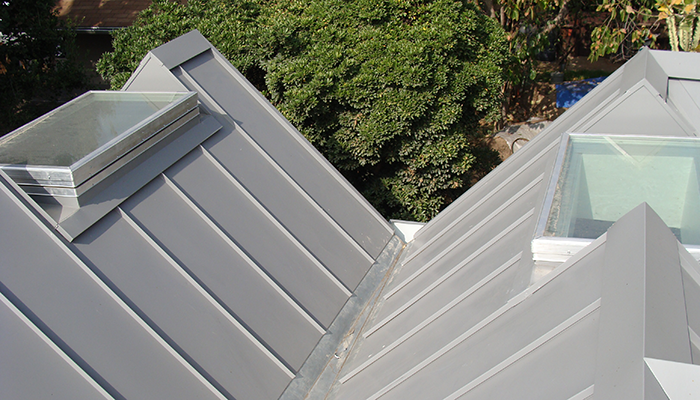

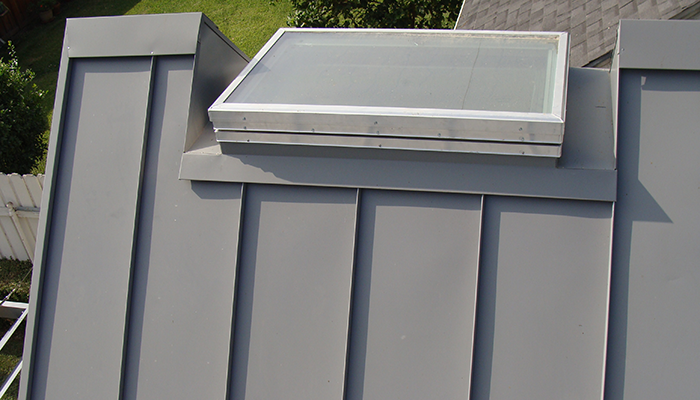

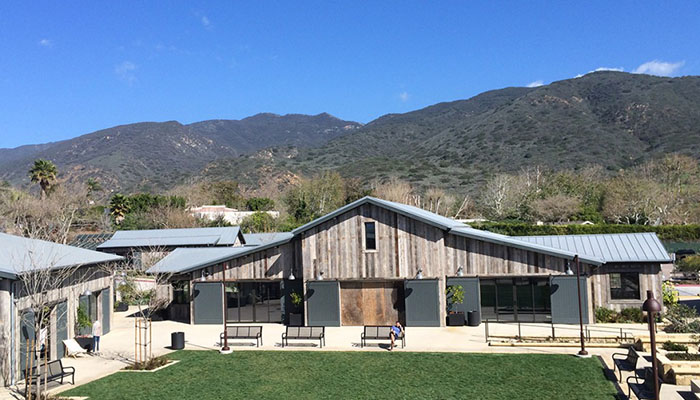

Double Lock Standing Seam Panel 1″ & 1.5″

Concealed fastened Panel System
Panel Coverage: 7.5" to 30"
Panel Length: delivery available up to 52'
Panel Rib Height: 1" or 1.5"
UL, ASTM and DADE Test Ratings
Curved Panels are available

Related Projects

Angled Seam Panel 1″ & 1.5″

Concealed fastened Panel System
Panel Coverage: 7.5" to 30"
Panel Length: delivery available up to 52'
Panel Rib Height: 1" or 1.5"
UL, ASTM and DADE Test Ratings
Curved Panels are available

Related Projects

Snap Lock Roof Panel 1" & 1.5"

Concealed fastened Panel System
Panel Coverage: 7.5" to 30"
Panel Length: delivery available up to 52'
Panel Rib Height: 1" or 1.5"
UL, ASTM and DADE Test Ratings

Related Projects

Batten Snap Panel

Concealed fastened Panel System
Panel Coverage: 7.5" to 30"
Panel Length: delivery available up to 52'
Panel Rib Height: 1"
UL and ASTM Test Ratings
Curved Panels are available

Related Projects

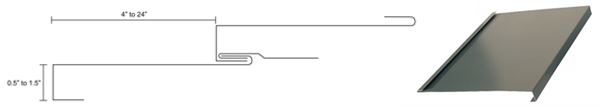

Stepped Roof Panel

Part ID: SRP
Concealed fastened Panel System
Applies over solid substructure
Panels to be installed horizontal
Minimum Roof Slope: 3:12
Panel Coverage: 4” to 24”
Panel Length: up to 25'’
Panel Rib Height: 0.5” to 1.5”
Minimum Curving Radius: not available
Engineered calculations for wind uplift available

Related Projects

Nail Strip Panel 1" & 1.5"

Part ID: NSP1 or 1.5
Concealed fastened and snap together Panel System
Applies over solid substructure
Panels can be installed horizontal or vertical and are
interchangeable for accent effect
Tapered Panels are available
Minimum Roof Slope: 3:12
Panel Coverage: 7.5” to 30”
Panel Length: delivery available up to 52’
Panel Rib Height: 1” or 1.5”
Minimum Curving Radius: not available

Related Projects

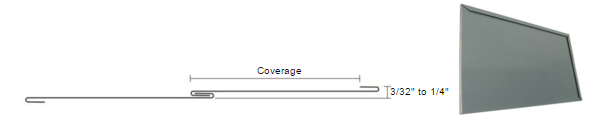

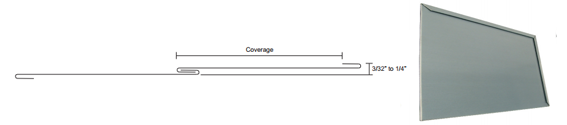

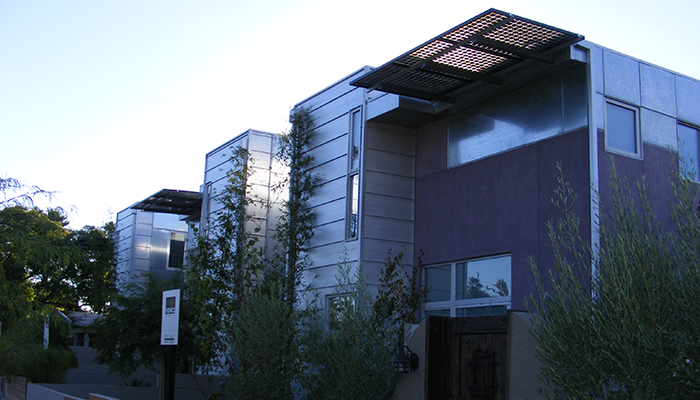

Flat Lock Panel

Concealed fastened Panel System
Panel Coverage: various sizes are available
Panel Rib Height: depending on the metal type
between 3/32" and 1/4"

Related Projects

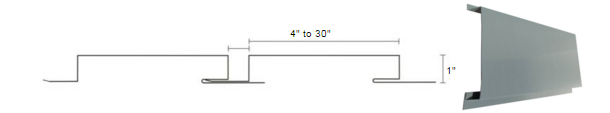

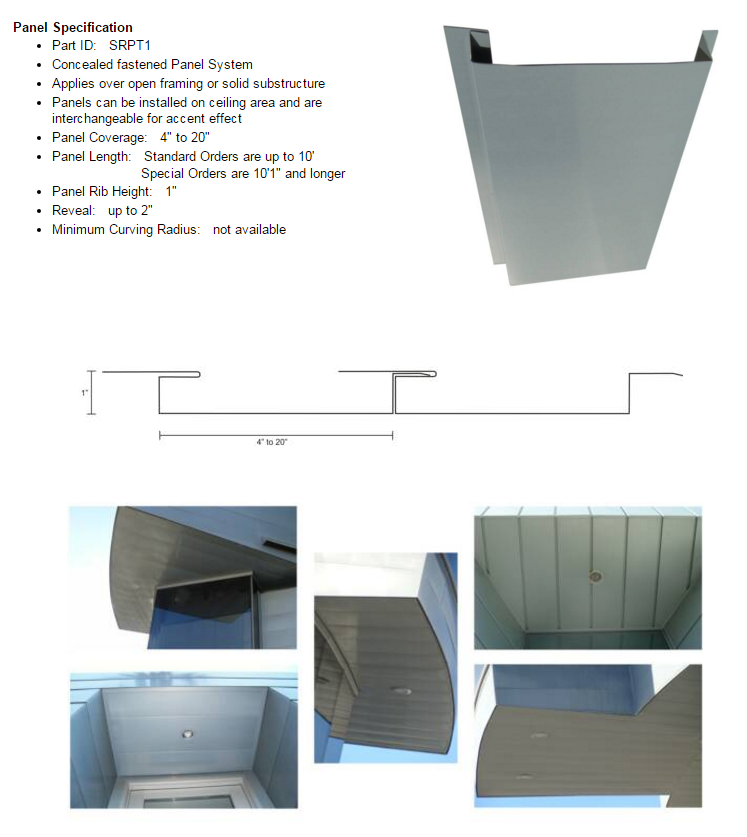

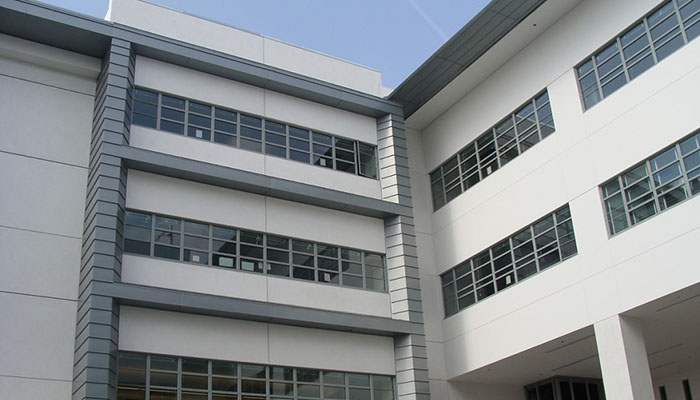

Interlocking Reveal Panel

Concealed fastened Panel System
Panel Coverage: 4" to 30"
Panel Length: any/ 52' delivered
Panel Rib Height: 1"
Reveal: up to 2"

Related Projects

Angled Seam Wall Panel 1" & 1.5"

Concealed fastened Panel System
Panel Coverage: 7.5" to 30"
Panel Length: delivery available up to 52'
Panel Rib Height: 1" or 1.5"
UL, ASTM and DADE Test Ratings
Curved Panels are available

Related Projects

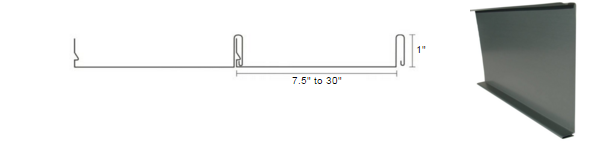

Snap Lock Wall Panel 1" & 1.5"

Concealed fastened Panel System
Panel Coverage: 7.5" to 30"
Panel Length: delivery available up to 52'
Panel Rib Height: 1" tor 1.5"

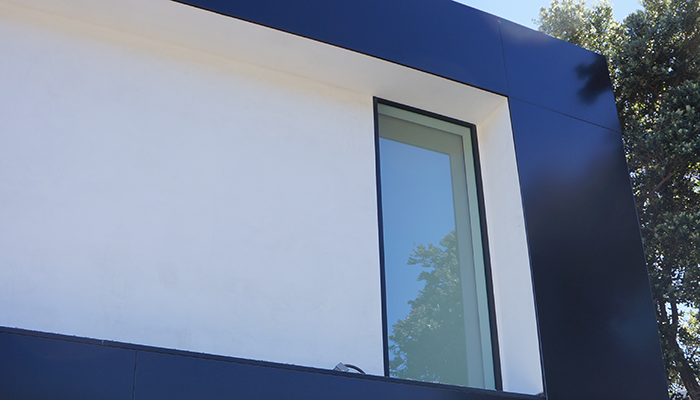

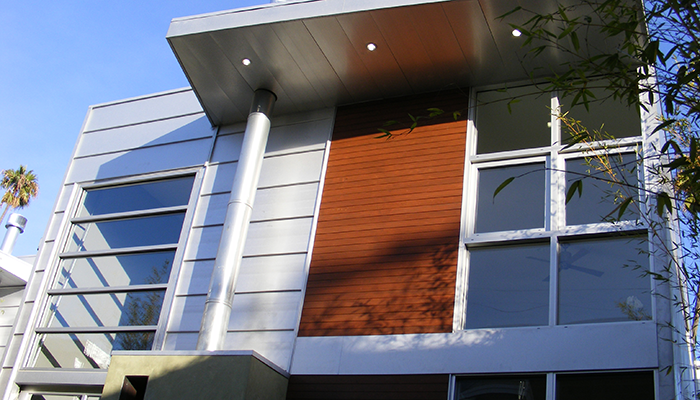

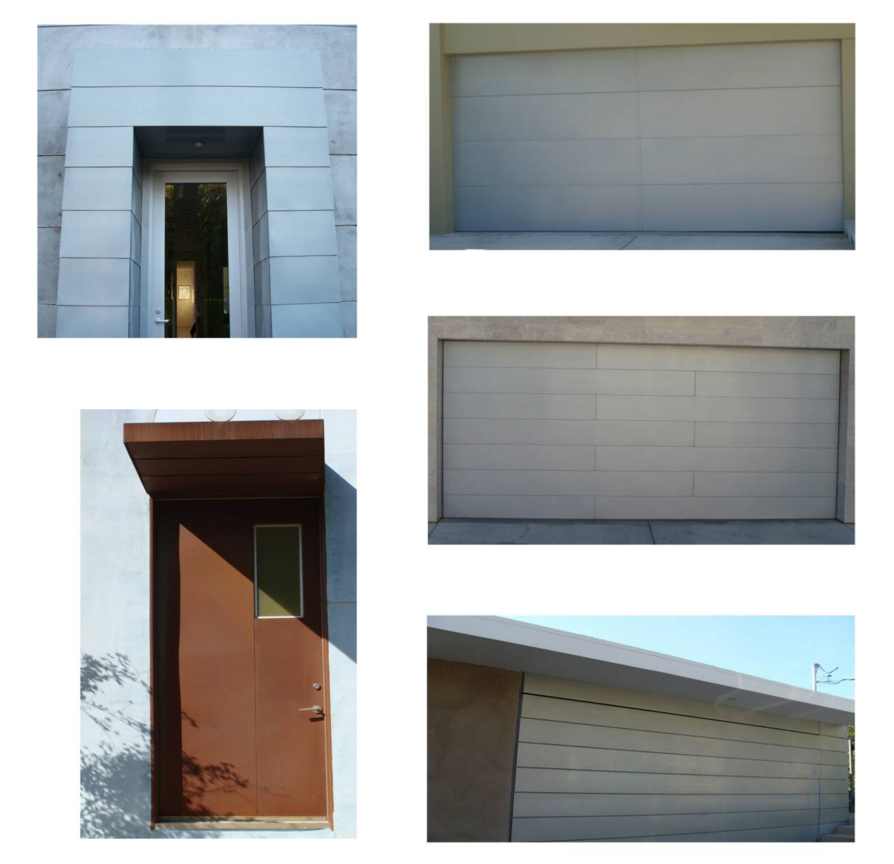

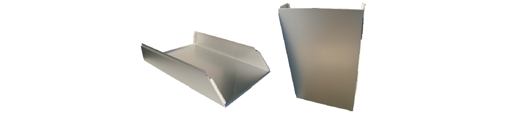

Aluminum Composite Panel

Part ID: ACP
Concealed fastened Panel System
Applies over open framing or solid substructure
Panels can be installed horizontal, vertical or diagonal and are interchangeable for accent effect Panels are available in various sizes and shapes, please review the photographs
Panel Width: varies
Panel Length: varies

Related Projects

Flat Lock Tile

Part ID: FLP
Concealed fastened Panel System
Install from the bottom upwards
Applies over solid substructure
Panels can be installed horizontal, vertical or
diagonal and are interchangeable for accent effect
Panels are available in various sizes and shapes, please review the photographs Convex and concave tiles
Diamond-, Square-, and Rectangular Tiles
Available in different geometrical forms, e.g.
trapezoidal or honeycomb design
Panel Width: varies
Panel Length: varies
Material: Copper, Stainless Steel and Zinc

Related Projects

Double Lock Standing Seam Panel 1″ & 1.5″

Concealed fastened Panel System
Panel Coverage: 7.5" to 30"
Panel Length: delivery available up to 52'
Panel Rib Height: 1" or 1.5"
UL, ASTM and DADE Test Ratings
Curved Panels are available

Related Projects

Angled Seam Panel 1″ & 1.5″

Concealed fastened Panel System
Panel Coverage: 7.5" to 30"
Panel Length: delivery available up to 52'
Panel Rib Height: 1" or 1.5"
UL, ASTM and DADE Test Ratings
Curved Panels are available

Related Projects

Snap Lock Roof Panel 1" & 1.5"

Concealed fastened Panel System
Panel Coverage: 7.5" to 30"
Panel Length: delivery available up to 52'
Panel Rib Height: 1" or 1.5"
UL, ASTM and DADE Test Ratings

Related Projects

Batten Snap Panel

Concealed fastened Panel System
Panel Coverage: 7.5" to 30"
Panel Length: delivery available up to 52'
Panel Rib Height: 1"
UL and ASTM Test Ratings
Curved Panels are available

Related Projects

Stepped Roof Panel

Part ID: SRP
Concealed fastened Panel System
Applies over solid substructure
Panels to be installed horizontal
Minimum Roof Slope: 3:12
Panel Coverage: 4” to 24”
Panel Length: up to 25'’
Panel Rib Height: 0.5” to 1.5”
Minimum Curving Radius: not available
Engineered calculations for wind uplift available

Related Projects

Nail Strip Panel 1" & 1.5"

Part ID: NSP1 or 1.5
Concealed fastened and snap together Panel System
Applies over solid substructure
Panels can be installed horizontal or vertical and are
interchangeable for accent effect
Tapered Panels are available
Minimum Roof Slope: 3:12
Panel Coverage: 7.5” to 30”
Panel Length: delivery available up to 52’
Panel Rib Height: 1” or 1.5”
Minimum Curving Radius: not available

Related Projects

Flat Lock Panel

Concealed fastened Panel System
Panel Coverage: various sizes are available
Panel Rib Height: depending on the metal type
between 3/32" and 1/4"

Related Projects

Interlocking Reveal Panel

Concealed fastened Panel System
Panel Coverage: 4" to 30"
Panel Length: any/ 52' delivered
Panel Rib Height: 1"
Reveal: up to 2"

Related Projects

Angled Seam Wall Panel 1" & 1.5"

Concealed fastened Panel System
Panel Coverage: 7.5" to 30"
Panel Length: delivery available up to 52'
Panel Rib Height: 1" or 1.5"
UL, ASTM and DADE Test Ratings
Curved Panels are available

Related Projects

Snap Lock Wall Panel 1" & 1.5"

Concealed fastened Panel System
Panel Coverage: 7.5" to 30"
Panel Length: delivery available up to 52'
Panel Rib Height: 1" tor 1.5"

Aluminum Composite Panel

Part ID: ACP
Concealed fastened Panel System
Applies over open framing or solid substructure
Panels can be installed horizontal, vertical or diagonal and are interchangeable for accent effect Panels are available in various sizes and shapes, please review the photographs
Panel Width: varies
Panel Length: varies

Related Projects

Let us assist you on your next project to implement your Metal Visions and Designs.

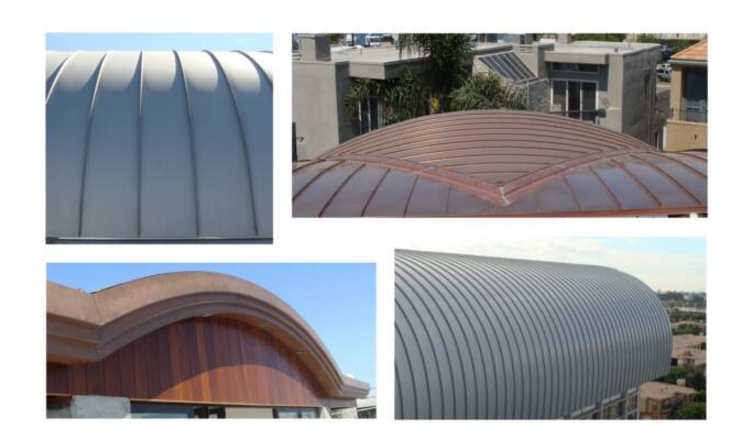

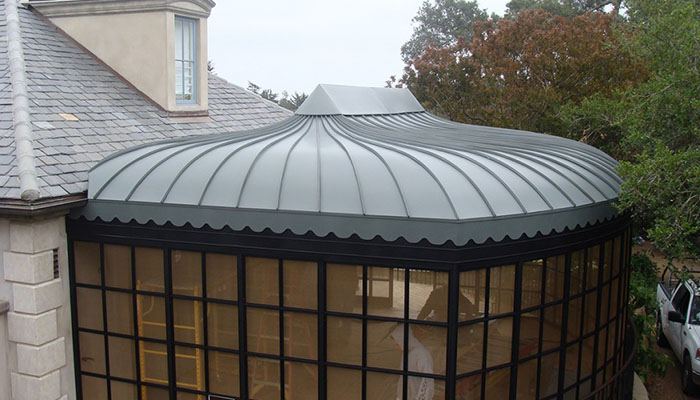

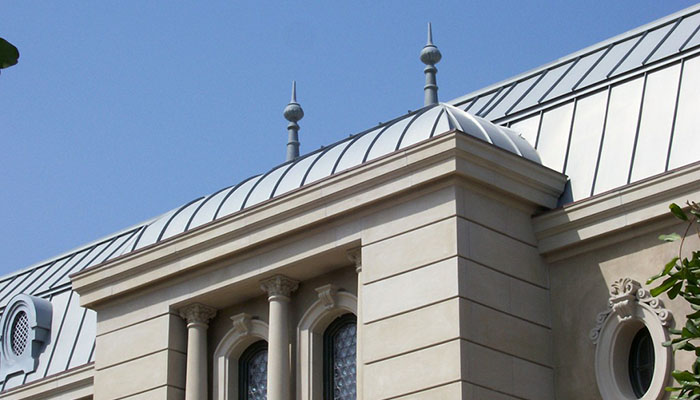

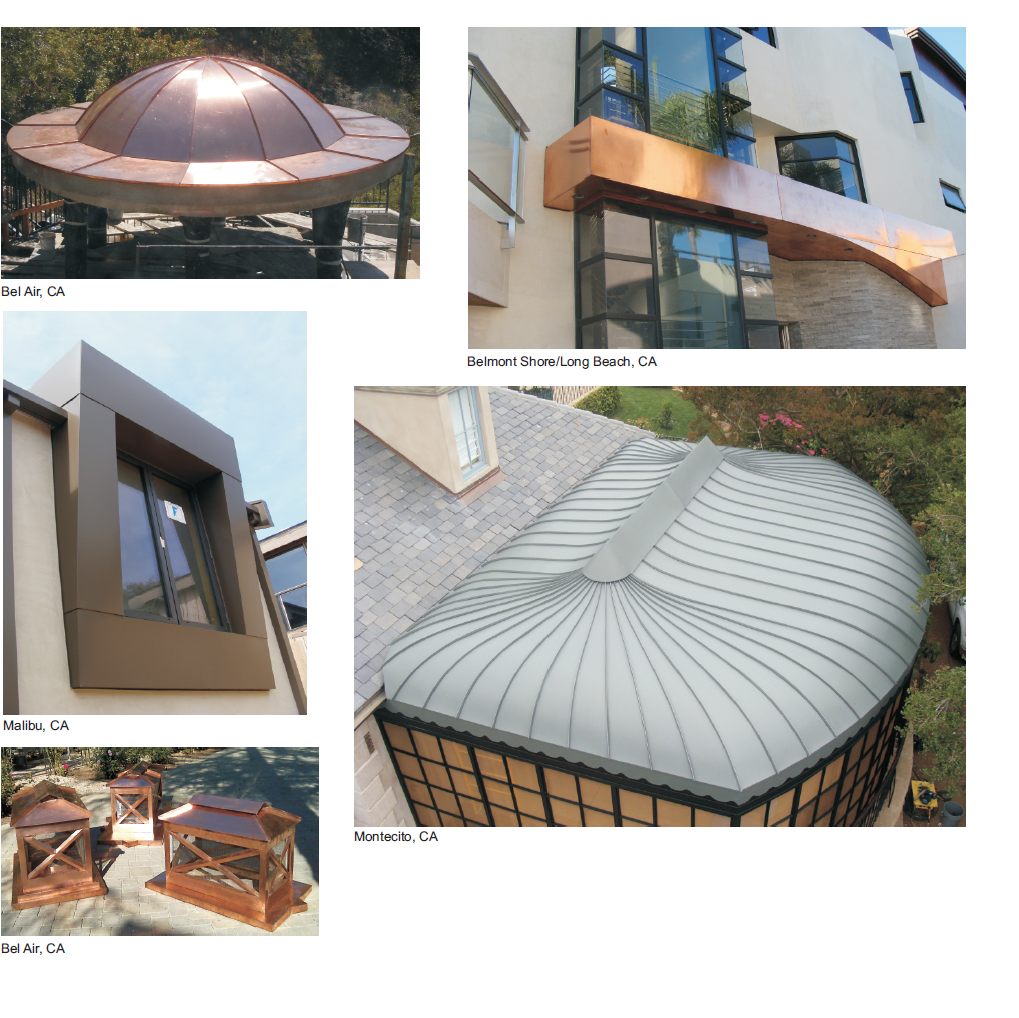

Changing the shape of metal roofing with giving your next project a new design with CSI Architectural Metal, Inc. curved panels.

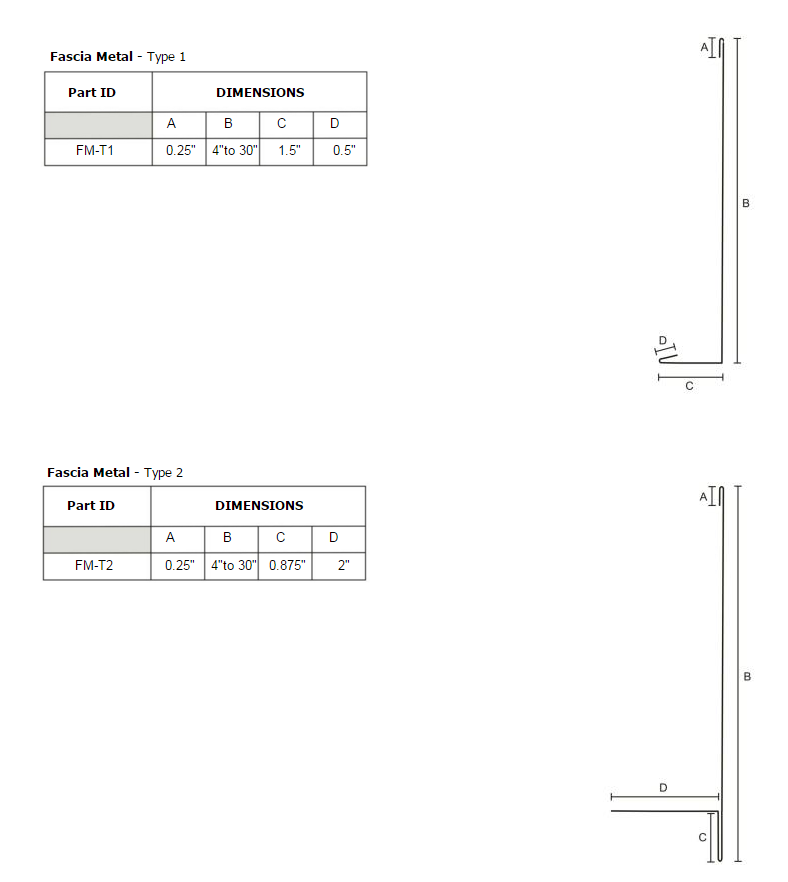

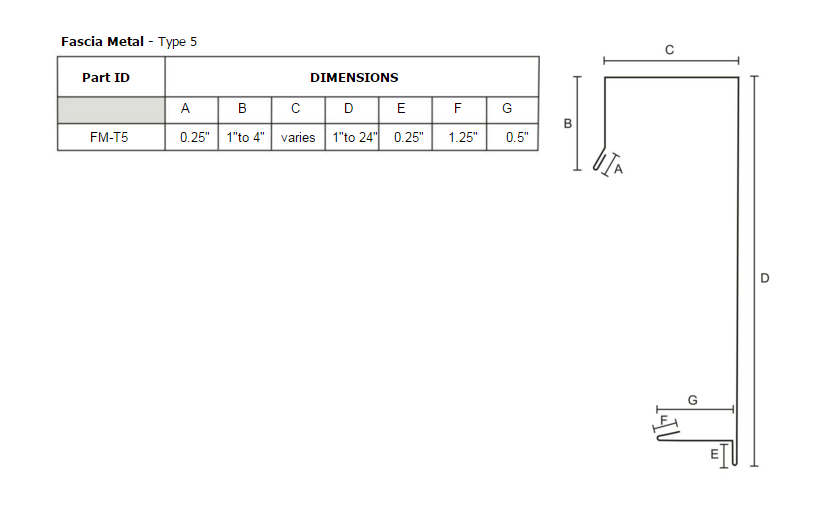

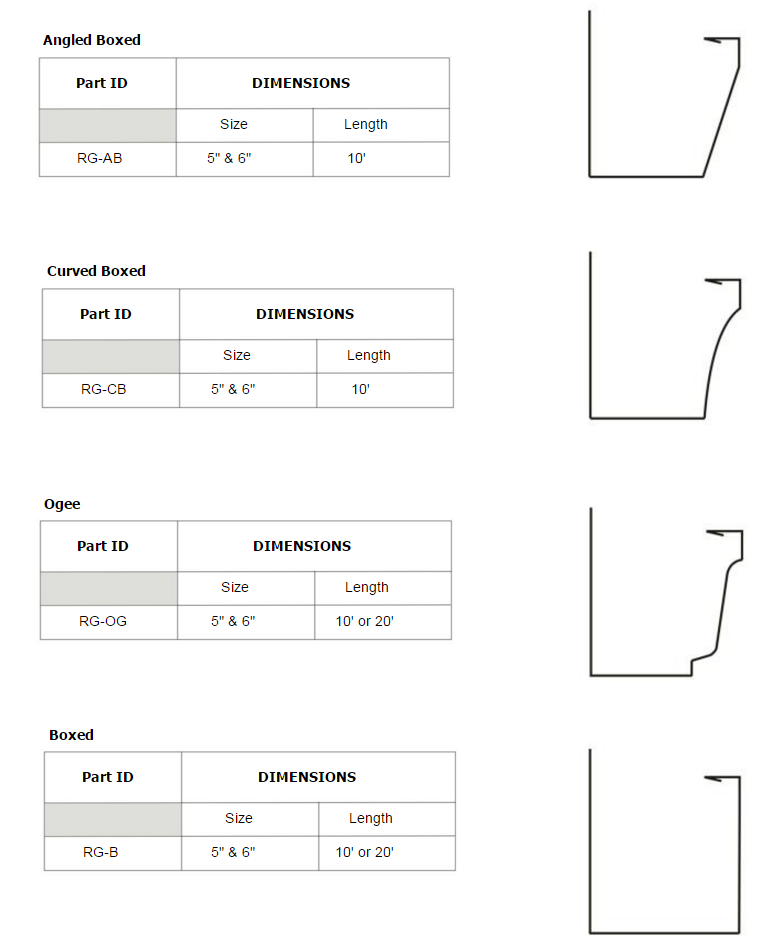

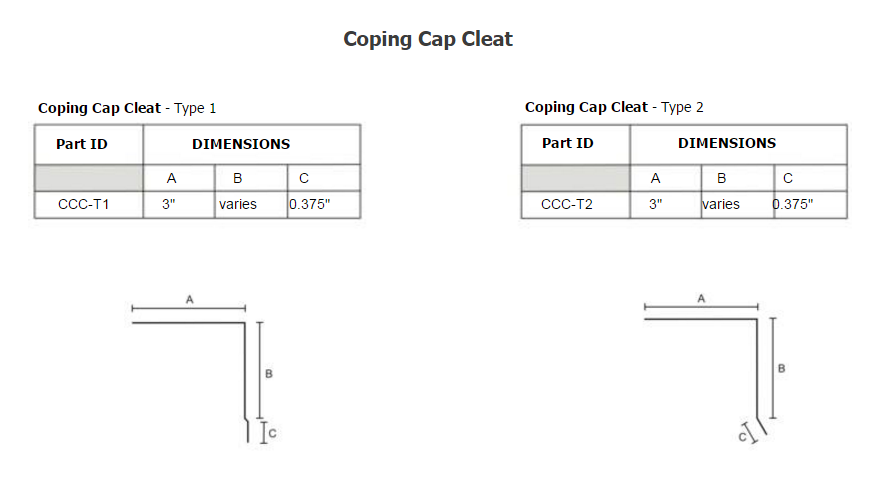

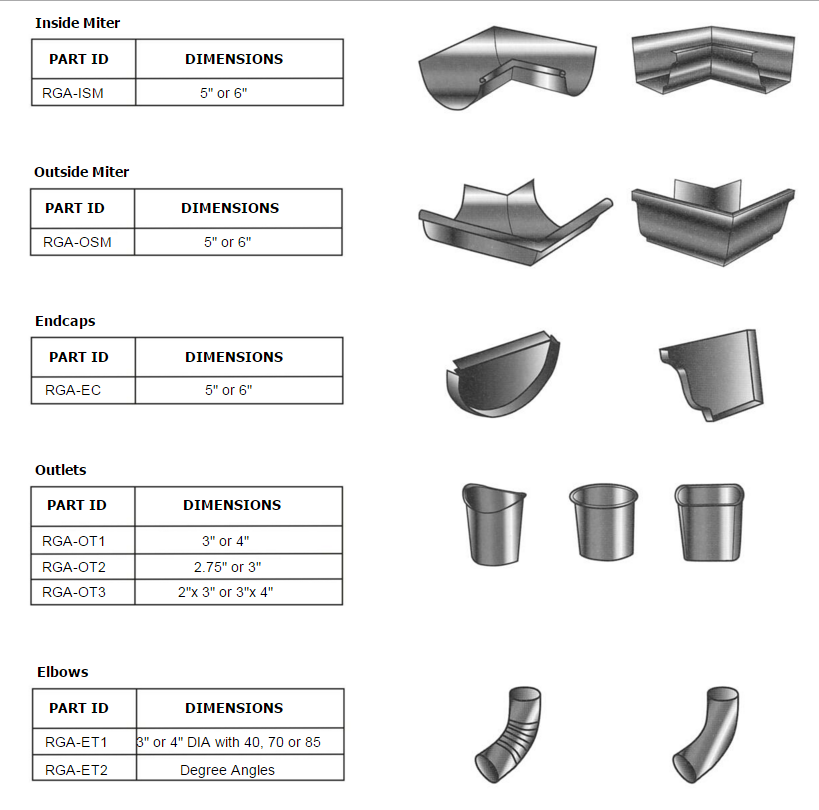

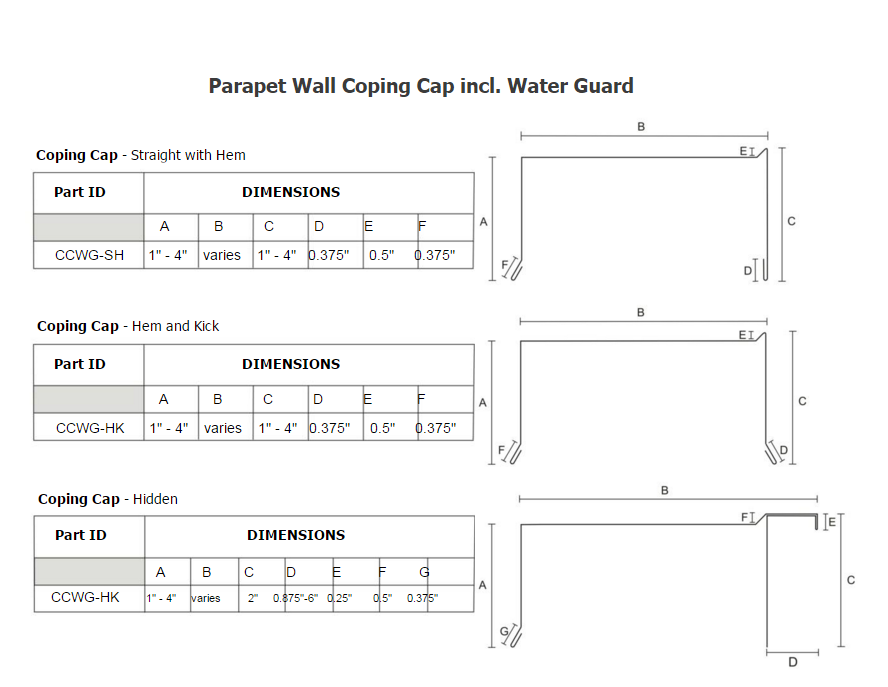

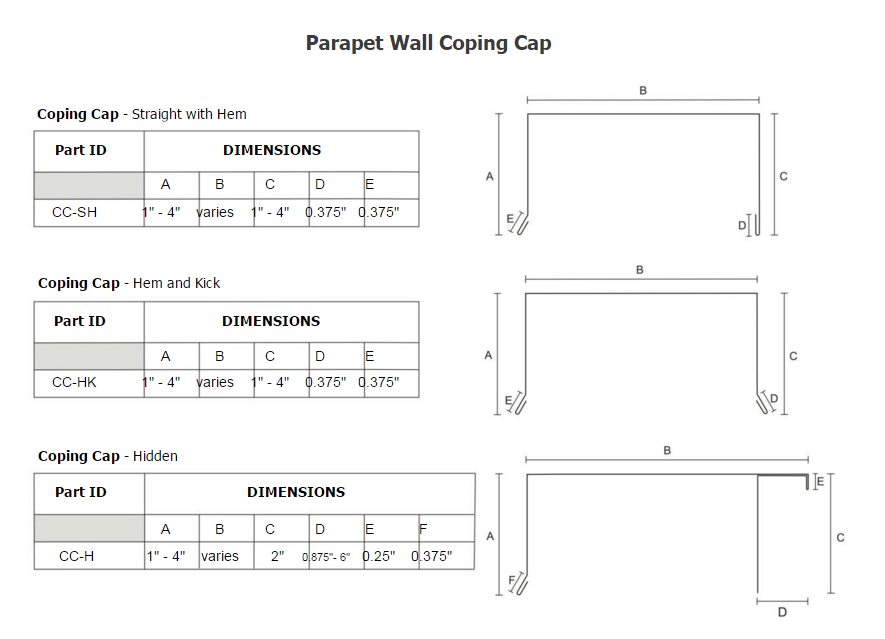

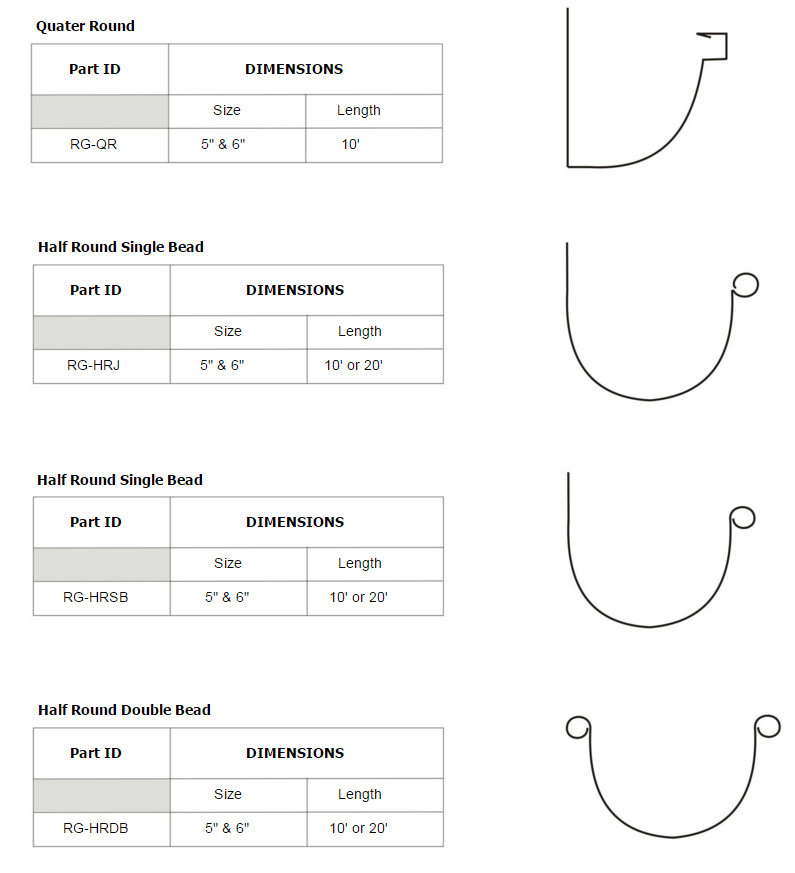

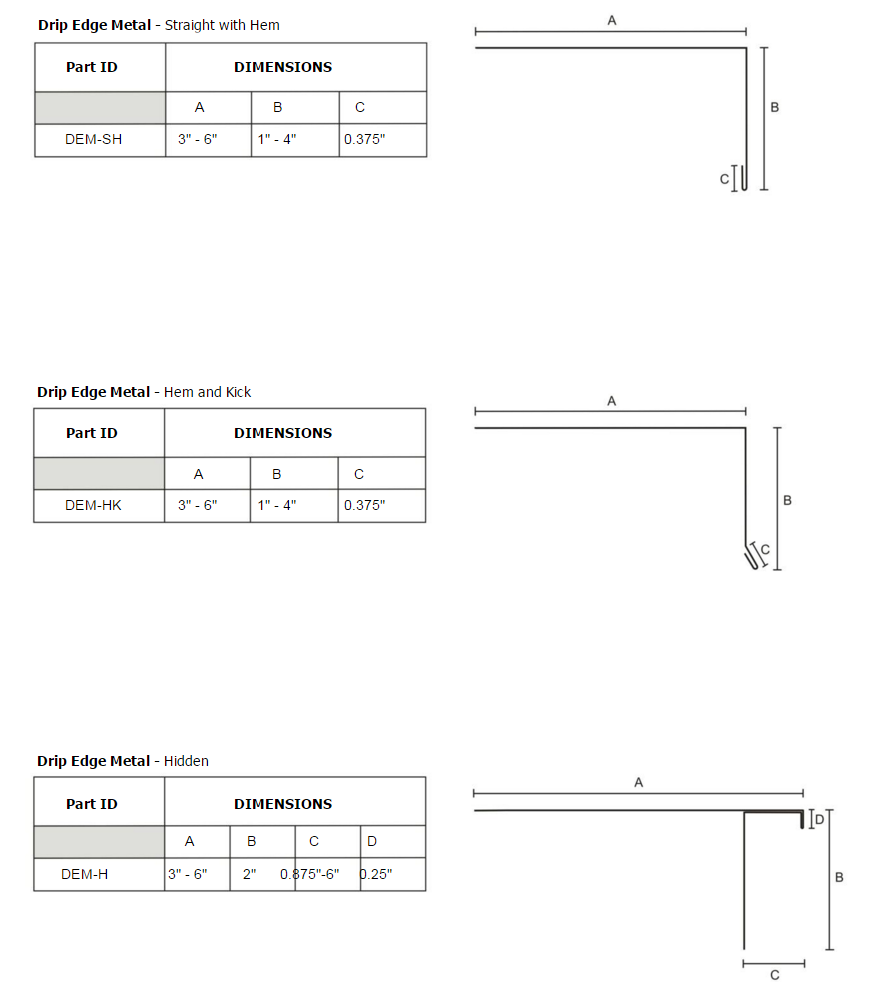

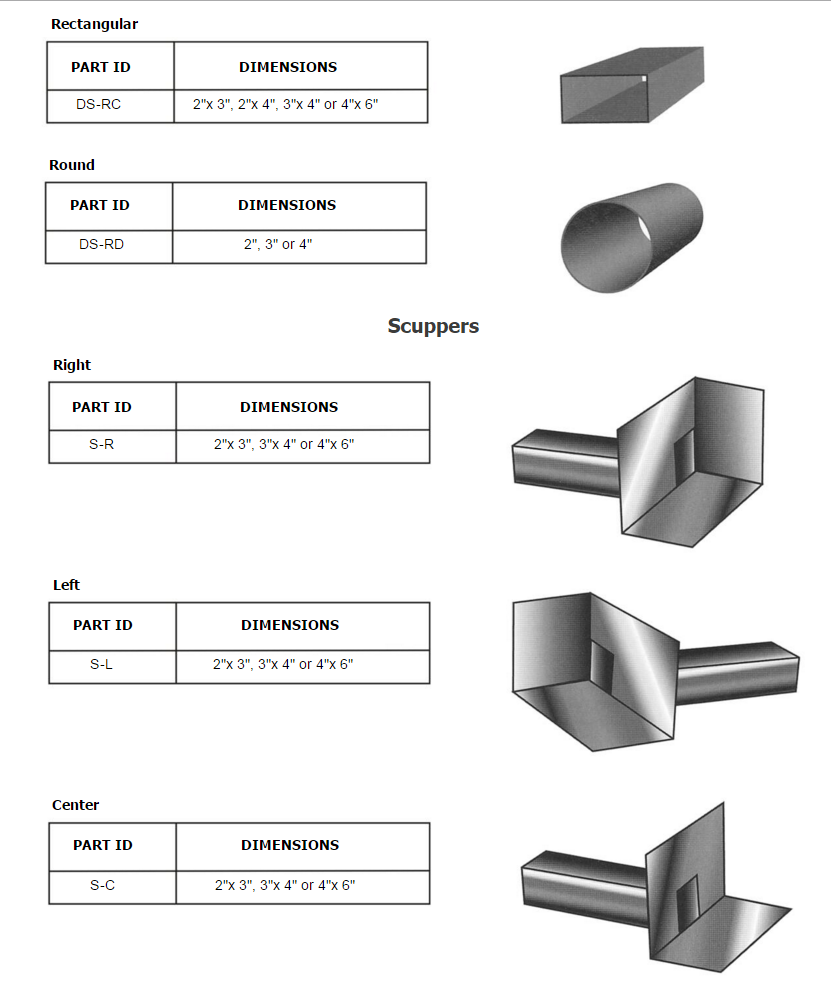

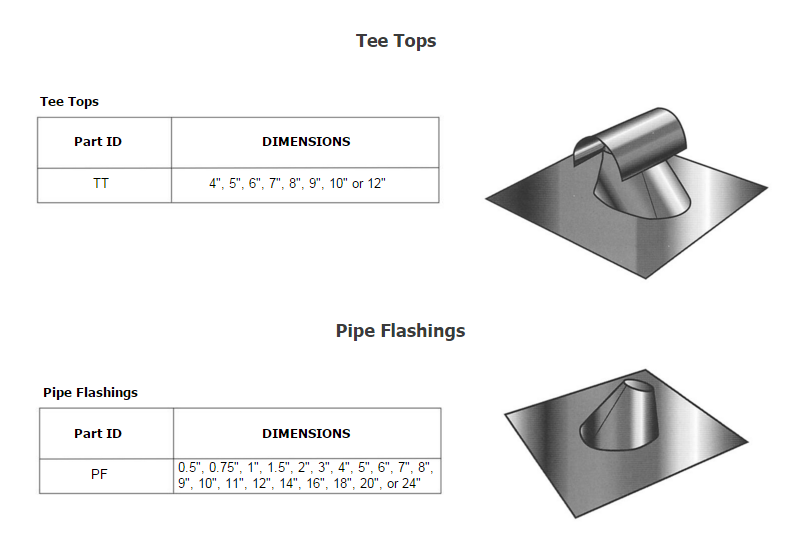

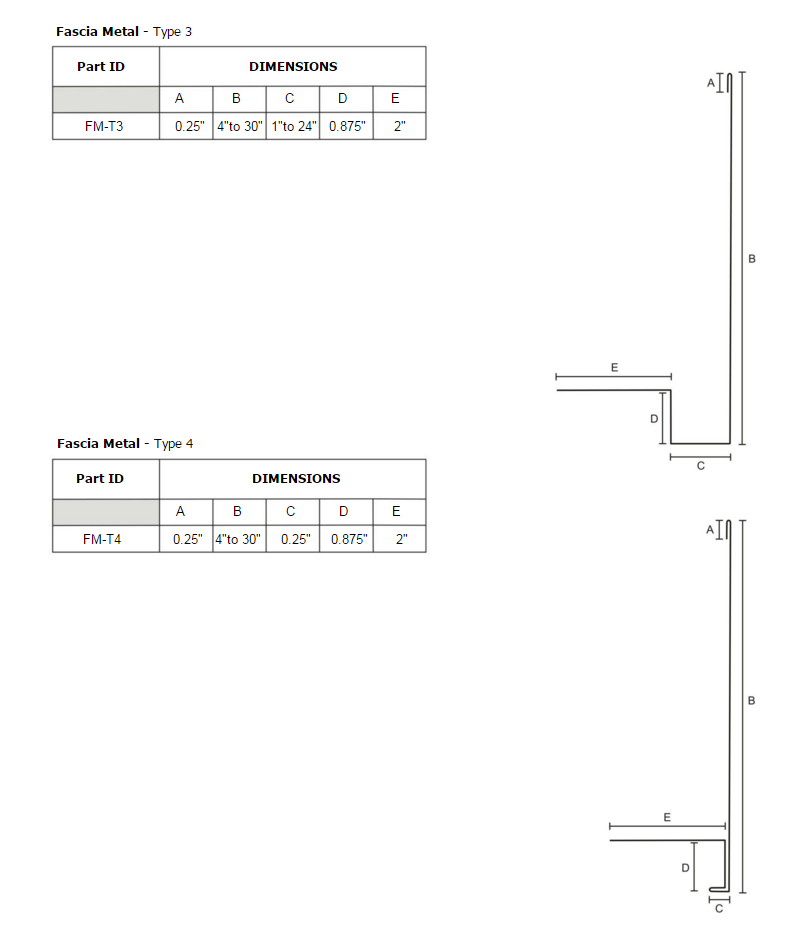

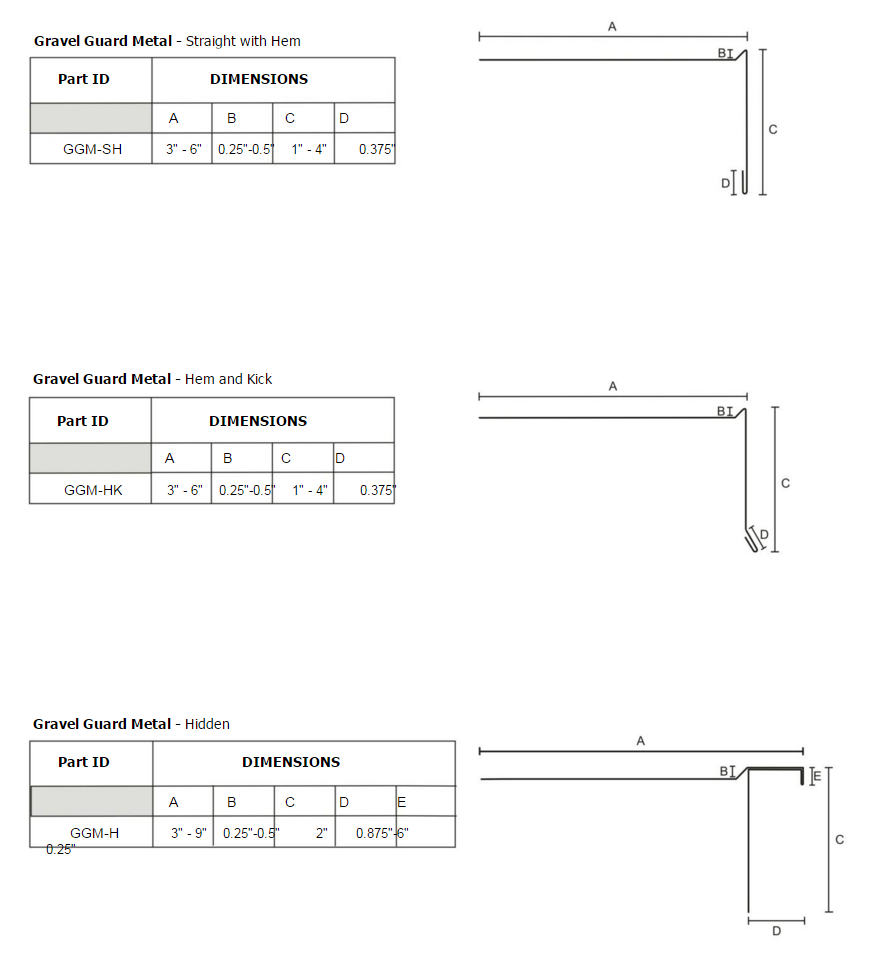

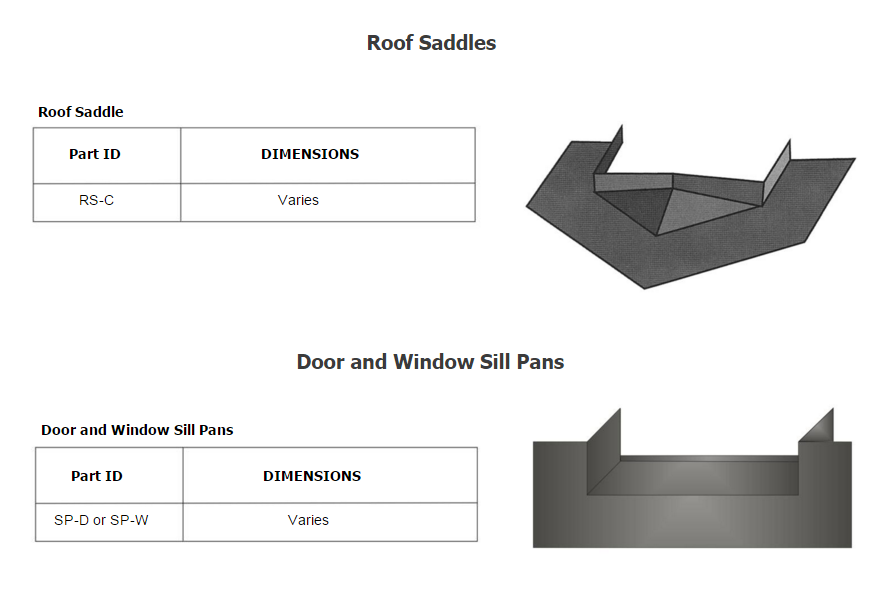

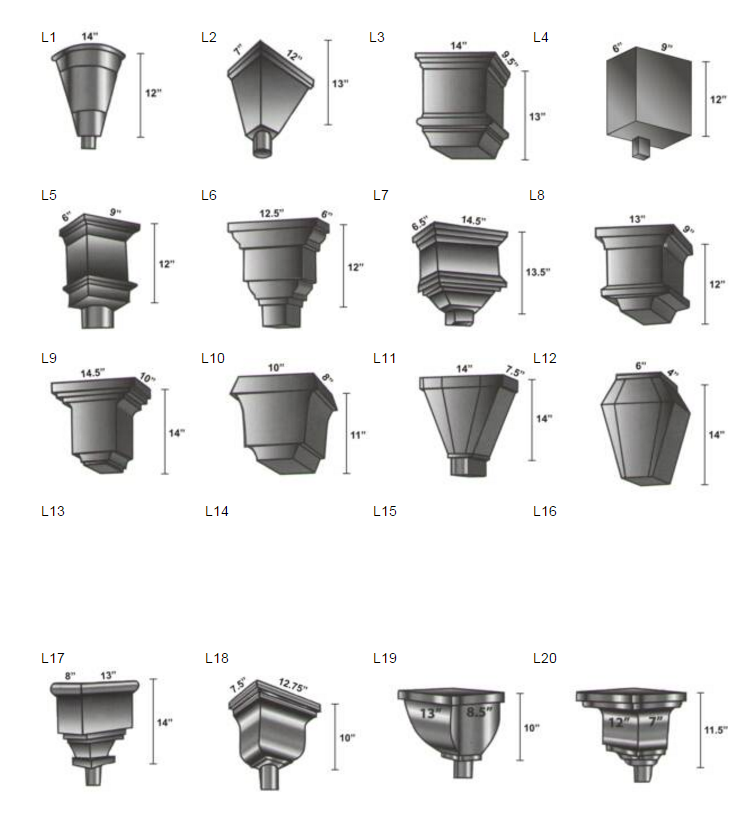

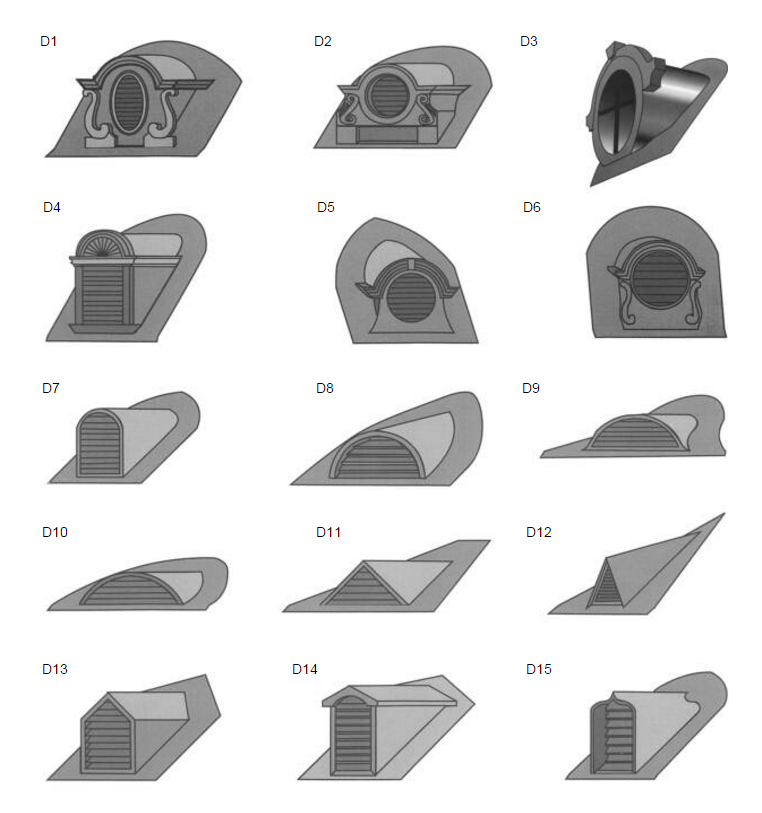

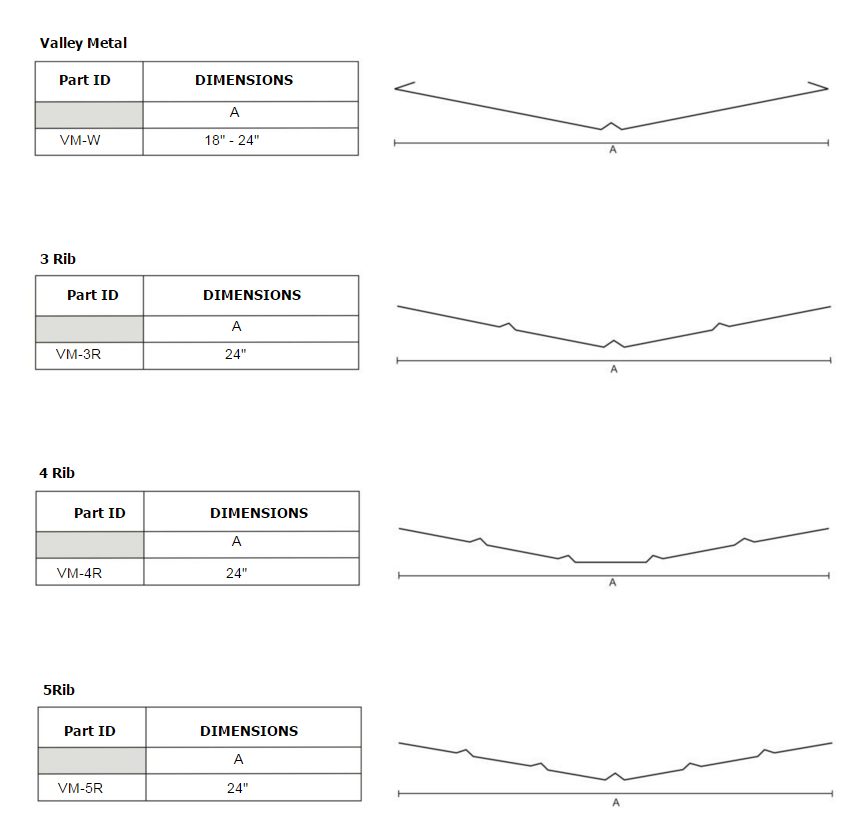

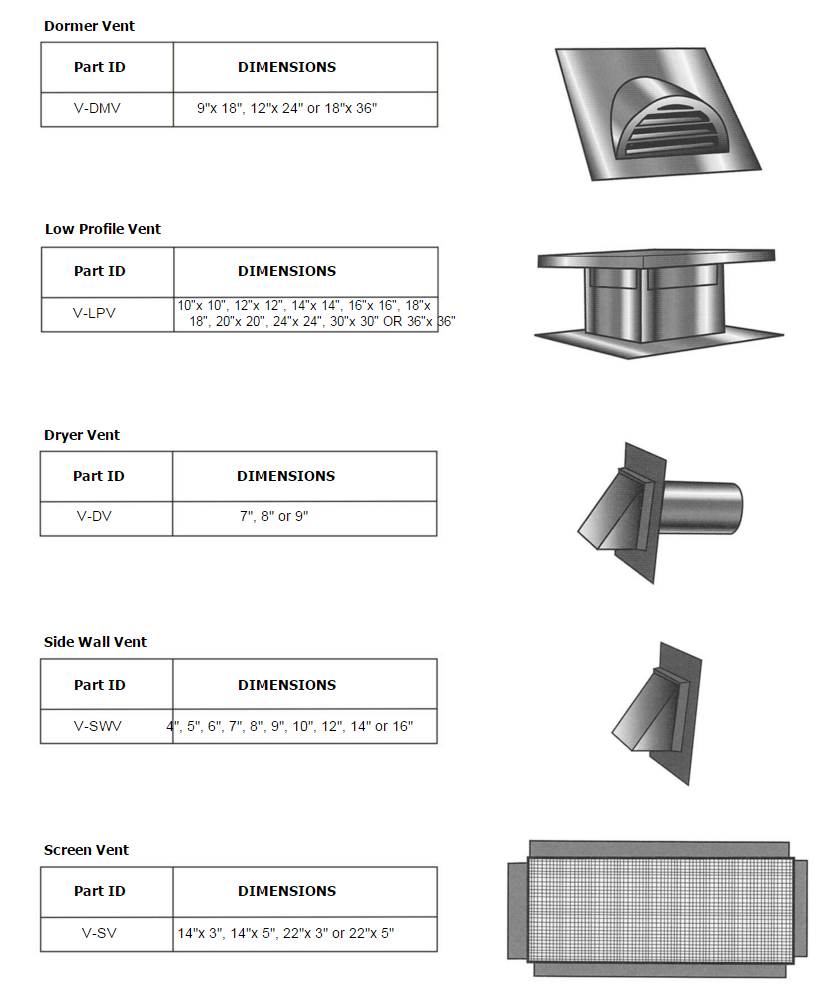

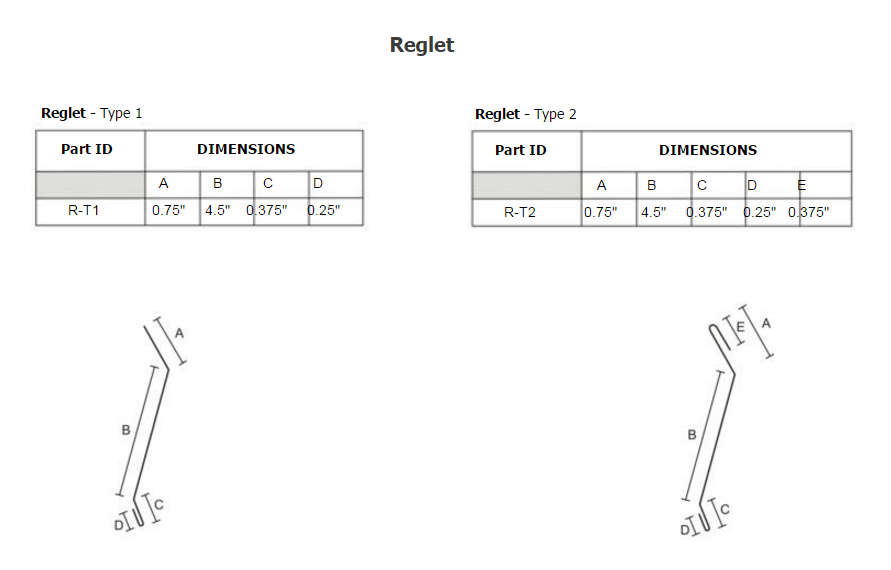

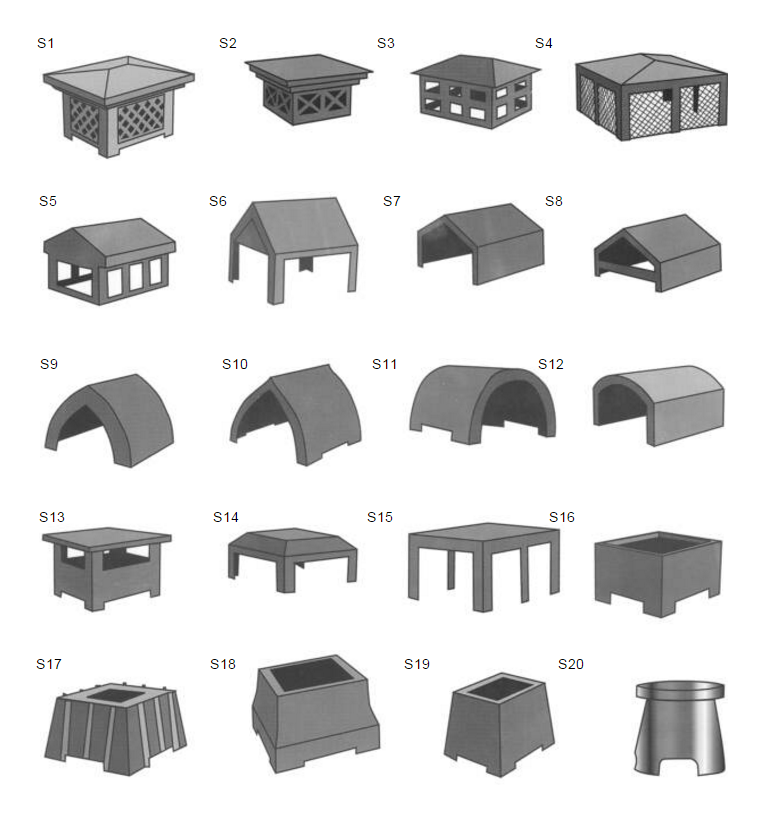

We offer three types of curved Standing Seam Roof and Wall Panels (Angled - and Double Lock Standing Seam 1" & 1.5" and Batten Snap 1") as well as Rain Gutters, Rake Metal, drip Edge, Fascia Panels and various Flashings and Trim Pieces, please ask your Sales Representative for more information.

The following materials may be used:

Titan Zinc	up to 1mm (20ga)	from a radius of 23.5"
Copper	up to 20oz.	from a radius of 23.5"
Aluminum	up to 0.044	from a radius of 23.5"
Stainless Steel	up to 26ga	from a radius of 60" (profile height 1")
Steel	up to 22ga	from a radius of 60" (profile height 1")

The axial dimensions of the panels lie between 7.5" and 30".

Enduring Metals Inc. offers project-consulting from the design-stage until completion, assisting with project-specific application details, providing engineered calculation on Wind Uplift, and conducting several inspections of the waterproofing & metal component installation. After the final and successful inspection EMI issues a 10/20* year weather-tightness warranty.

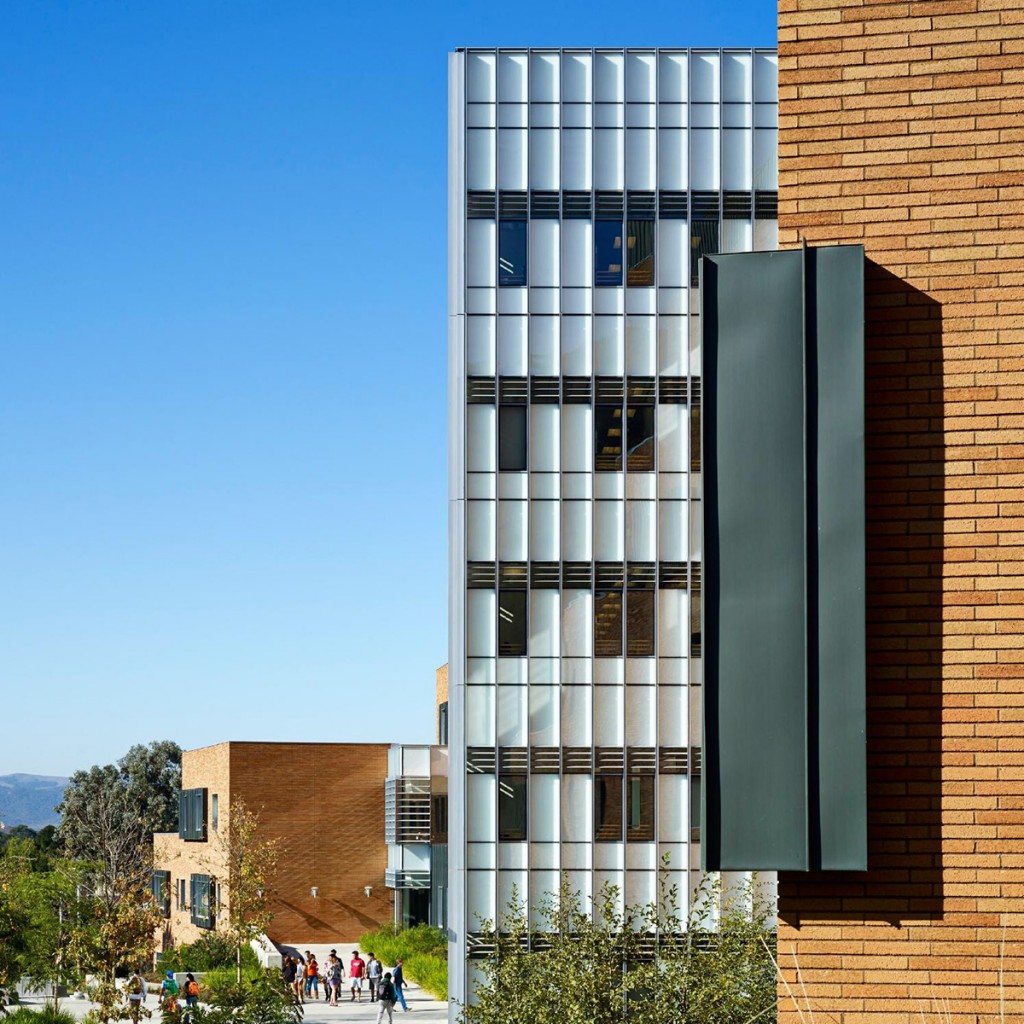

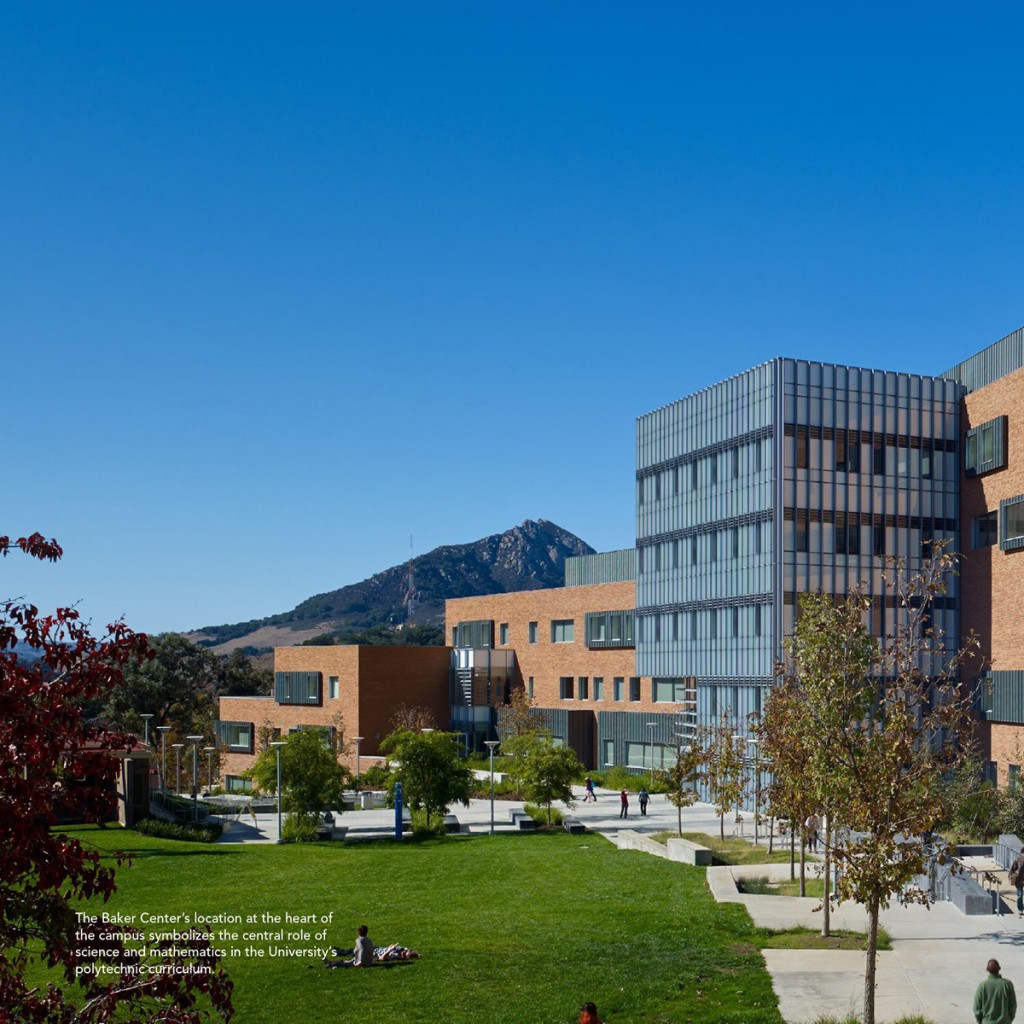

CSI Architectural Metal Inc had the privilege to fabricate and supply an engineered zinc system for roofs and walls at Cal Poly Technic University in San Luis Obispo CA, covered under CSI's 20 year Weather-tightness warranty.
